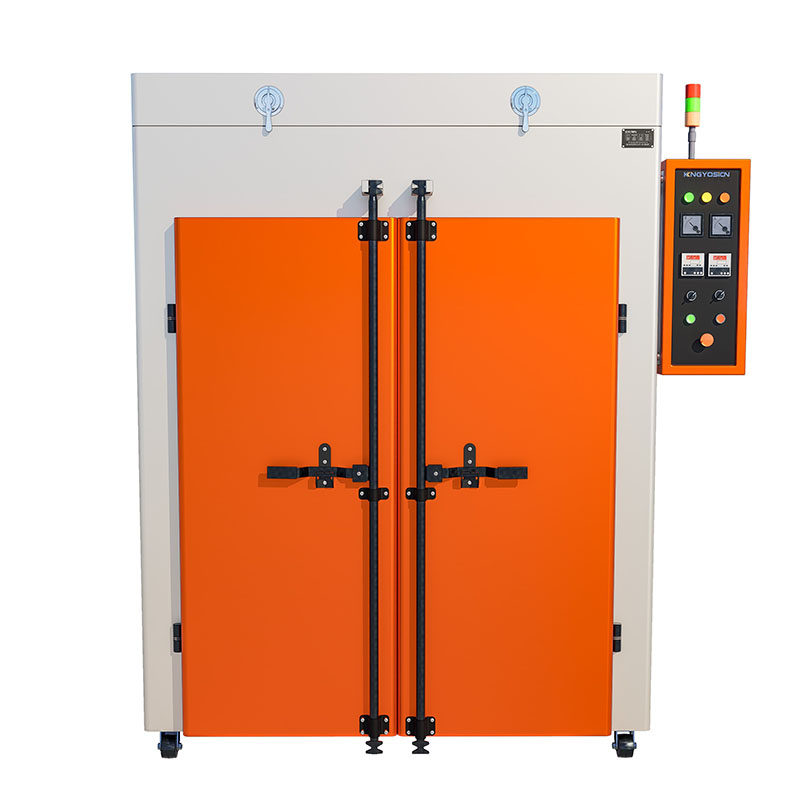

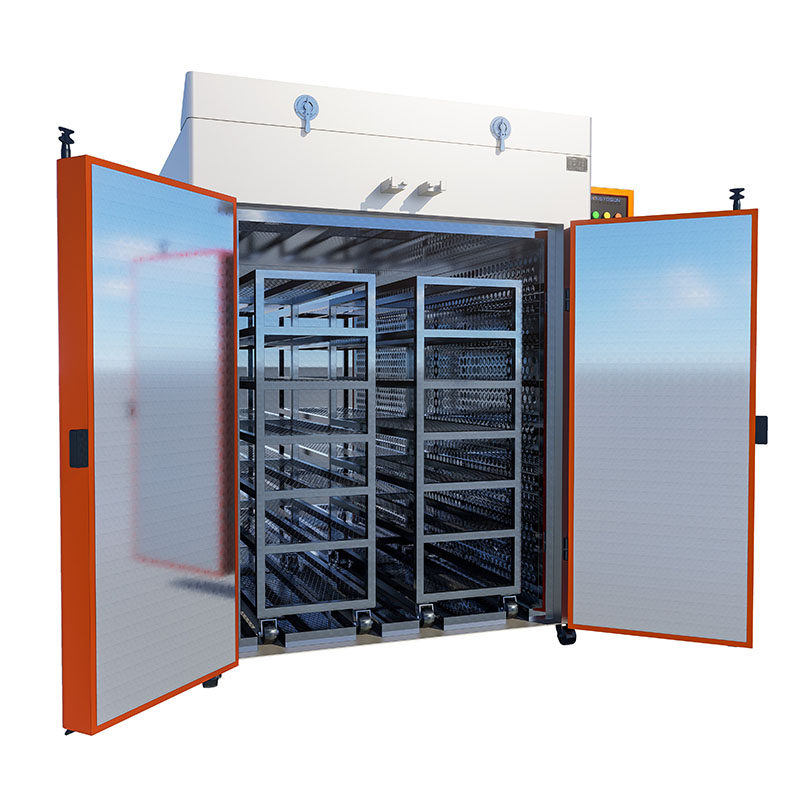

电热鼓风干燥箱作为一种除去水分、测试产品温度特性的设备被广泛应用于企事业单位和各种检测实验室，鼓风干燥箱具有控温性强，空气对流，温度波动度低等优点。适用于工矿企业，化验室，科研单位等作干燥、烘焙熔蜡、灭菌作用。
Model型号 | YD-500 | YD-2000T | YD-2600T | YD-4000T | YD-10000T |
门数量 Number of Doors | 1 | 2 | 2 | 2 |
|
内容积Internal Volume | 0.5 m3 | 2.1 m3 | 2.6；m³ | 4.2 m3 |
|
工作室尺寸 Internal Dimension（mm） | W720×D720×H1000 | W1200×D1200×H1500 | W1750XD1250XH1750 | W2100XD1250×H1500 | 3200W x 1700D x 1900H |
External Dimension（mm）外尺寸 | w900xD1050xH1800 | W1850×D1500×H2100 | W2100XD1450XH2350
| D1400×W2650×H2100 | 3800W x 1900D x 2400D |
电源电压Power Supply | 380V,3ph,10.5 Kw | 380V,3ph,17 Kw | 380V,3ph，25kw | 380V,3ph，26kw | 380V,3ph，42kw |
内胆材质Heating Element | 304 stainless steel heater |
External Material | steel plate, with rust proof treatment |
Internal Material | Stainless steel |
台车尺寸 Trolley Dimension | / | W400xD1000xH1340 | W680XD1150XH1600 | W850xD1150xH1350 | W650xD1600xH1700 |
台车数量 Number of Trolley | / | 2 | 2 | 2 | 4 |
台车层数 Shelves per Trolley | 5 | 6 | 6 | 6 | 8 |
温度Maximum Operating Temperature | 120 C° | 120 C° | 120 C° | 120 C° | 120 C° |
